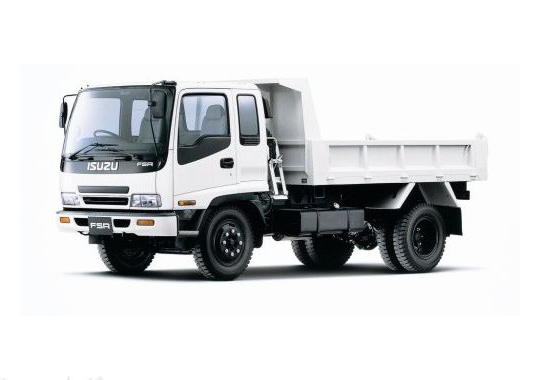

Isuzu F-Series FSR

Specifications
MODEL CODE
ISUZU FSR 33H (4x2)
ISUZU FSR 33P (4x2)
ENGINE
Model 6HH1 (Euro 1) 6HH1 (Euro 2)
Type 6-cylinder In-line, 4-cycle,
water-cooled, OHC
Displacement (cc) 8,226
Bore x Stroke (mm) 115 x 132
Compression Ratio 18.5:1
Maximum Output (kW (PS) @ rpm) [ISO NET] 143 (195) @ 2,850 147 (200) @ 2,800
Maximum Torque (Nm (kgm) @ rpm) [ISO NET] 500 (51) @ 1,700
Fuel System Direct Injection
WEIGHT & CAPACITIES
Gross Vehicle Weight (kg) 11,000
Curb Weight (kg) 3,620 3,725
Front (kg) 2,250 2,320
Rear (kg) 1,370 1,405
Fuel Tank Capacity (l) 200
AXLE
Front (Type) Reverse Elliot, I-Beam
Front Axle Capacity (kg) 3,600
Rear (Type) Banjo Fully Floating
Rear Axle Capacity (kg) 7,700
CLUTCH
Type Hydraulic control with helper spring,
dry single plate with cushioning spring
Size (mm) 350
PERFORMANCE
Max. Speed km/h 90 96
Max. Gradability ( %) 32.2 38.4
SUSPENSION SYSTEM
Suspension Front Semi elliptical alloy steel leaf springs shackle type,
hydraulic double acting telescopic shock absorber		 Semi elliptical alloy steel leaf springs shackle type,
hydraulic double acting telescopic shock absorber
  Rear Semi elliptical alloy steel leaf springs shackle type
TYRES & WHEELS
Tyres

8.25 x 20 x 14PR
  2 Front & 4 Rear
Wheels

20 x 6.5T (8 studs)
BRAKES
Service Air over hydraulic, dual circuit,
front & rear leading trailing
Parking Brake Type Mechanical expansion type,
located at the rear end of transmission
Auxiliary Exhaust Brake Electro-pneumatic control
STEERING
Steering System Power assist, Recirculating Ball Type
Min. Turning Diameter (m) 14.8 18.8
ELECTRICAL
Battery 12V-65AH (Two)
Alternator 24V-40A
