| MODEL CODE |
NPS75UHL |
| e-Brochure |
|

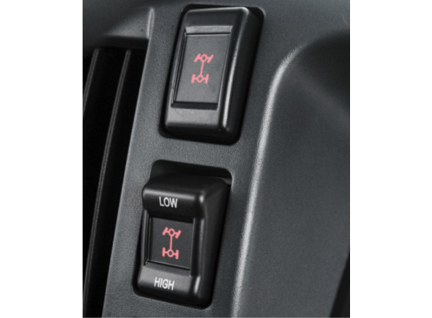

| Drive System |

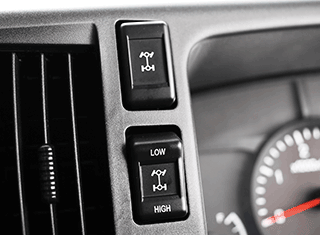

4×4 |

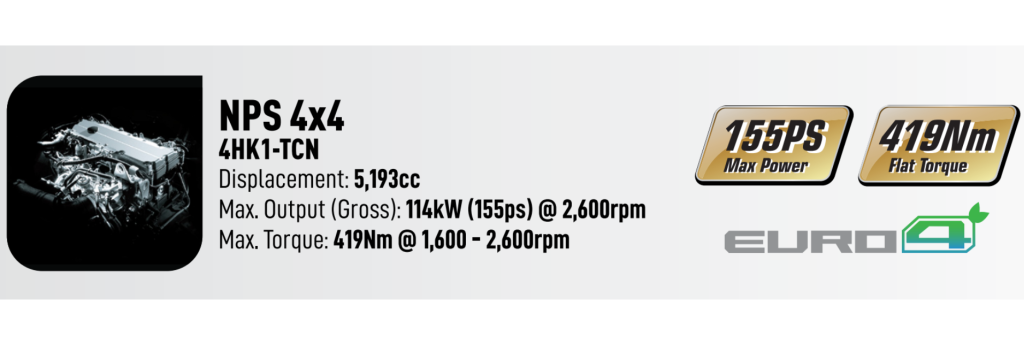

| ENGINE |
|
| Model |
4HK1-TCN |
| Type |
4-Cylinder Inline,4 Cycle, Water-Cooled |
| OHC, VGS Turbo with Intercooler |
| Displacement |
cc |
5,193 |
| Bore x Stroke |
mm |
115 x 115 |
| Maximum Output (Gross) |
kW (PS) @ rpm |
114(155) @ 2,600 |
| Maximum Torque |
Nm (kgfm) @ rpm |
419 @ 1,600-2,600 |
| Emission Level |
Euro 4 |
| Fuel System |
Common Rail Direct Injection |
| TRANSMISSION |
|
| Model / No. of Speed |
MYY-5T / 5-Speed Manual |
| Gear Ratio |
1st |
5.315 |
| 2nd |
3.053 |
| 3rd |
1.655 |
| 4th |
1.000 |
| 5th |
0.721 |
| Reverse |
5.068 |
| Final |
5.571 |
| WEIGHT & CAPACITIES |
|
| Gross Vehicle Weight |
kg |
7500 |
| Curb Weight |
kg |
2,875 |
| Front |
kg |
1945 |
| Rear |
kg |
950 |
| Fuel Tank Capacity |
l |
100 |
| AXLE |
|
| Front |
Type |

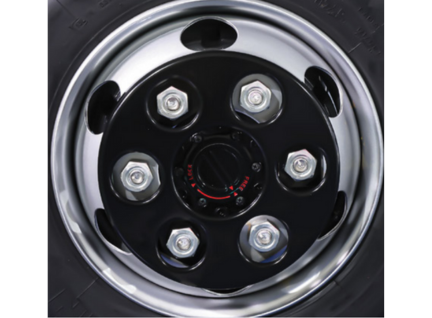

Single Banjo, Full Floating with Manual Lock Hub |
| Front Axle Capacity (Design) |
kg |
3,100 |

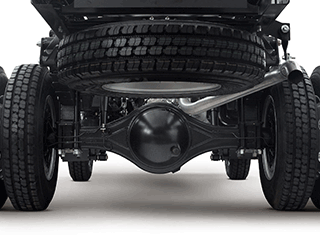

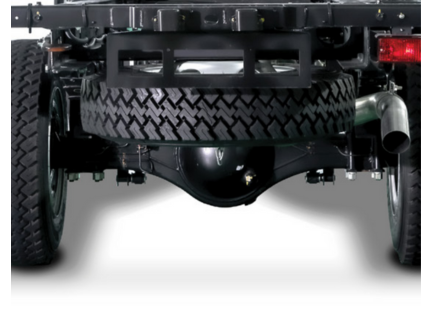

| Rear |
Type |
Banjo, Full Floating |
| Rear Axle Capacity (Design) |
kg |
6,600 |
| SUSPENSION SYSTEM |
|
| Suspension |
Front |
Semi Elliptical Alloy Steel Leaf Spring with Double Acting Telescopic Shock Absorber |
| Rear |
Semi Elliptical Alloy Steel Leaf Spring with Double Acting Telescopic Shock Absorber |
| TYRES & WHEELS |
|

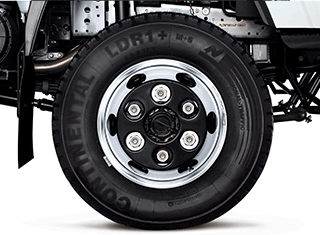

| Tyres |
8.5R17.5 |
| Wheels |
17.5x 6.00-127 |
| BRAKES |
|
| Service |

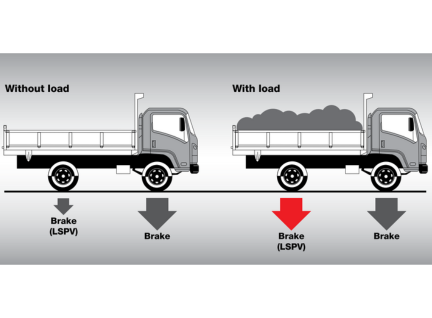

Drum Brakes with Dual Circuit Hydraulic Control,
Vacuum Assistance and Load Sensing Proportioning Valve (LSPV) |
| Parking Brake Type |
Transmission Mounted, Mechanical Operated Internal Expanding |
| Auxiliary |
Exhaust Brake |

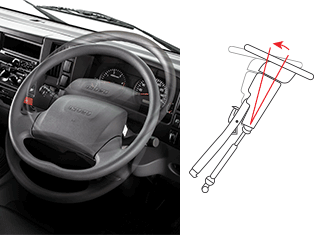

| STEERING |
|
| Steering System |
Power Assist, Recirculating Ball Type |
| Min. Turning Radius |
m |
6.9 |
| ELECTRICAL |
|
| Battery |
80D26LX2 |
| Alternator |
24V – 80A |
| Other Safety |
|
| Safety |
Cab Tilt Warning (Single cab only) |
| Security |
Central Locking with Remote Keyless Entry |
| DIMENSION |
|
| Overall Length |
mm |
5,985 |
| Overall Width |
mm |
2120 |
| Overall Height |
mm |
2,452 |
| Wheelbase |
mm |
3,395 |
| Front Overhang |
mm |
1,110 |
| Rear Overhang |
mm |
1,510 |
| Front Tread |
mm |
1,665 |
| Rear Tread |
mm |
1,650 |
| Cab to Axle Center |
mm |
2,792 |
