EXR 420 / EXZ 460 (GCW 45,000KG / GCW 60,000KG)

Brand: Isuzu
Category: Truck (GIGA)

Features

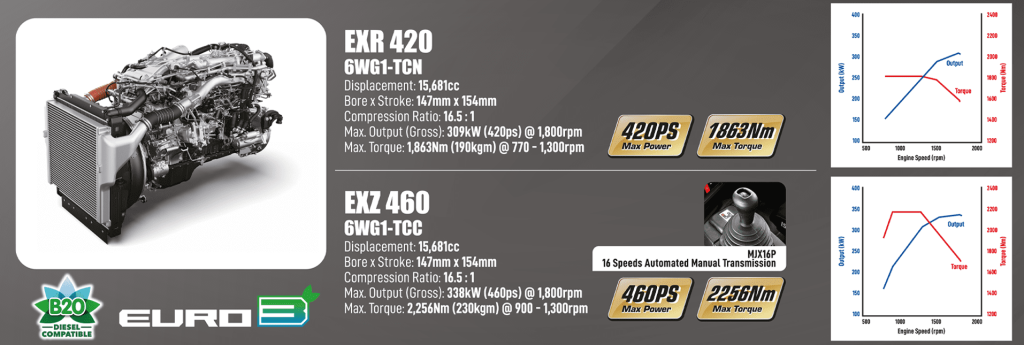

Performance

Useful Features

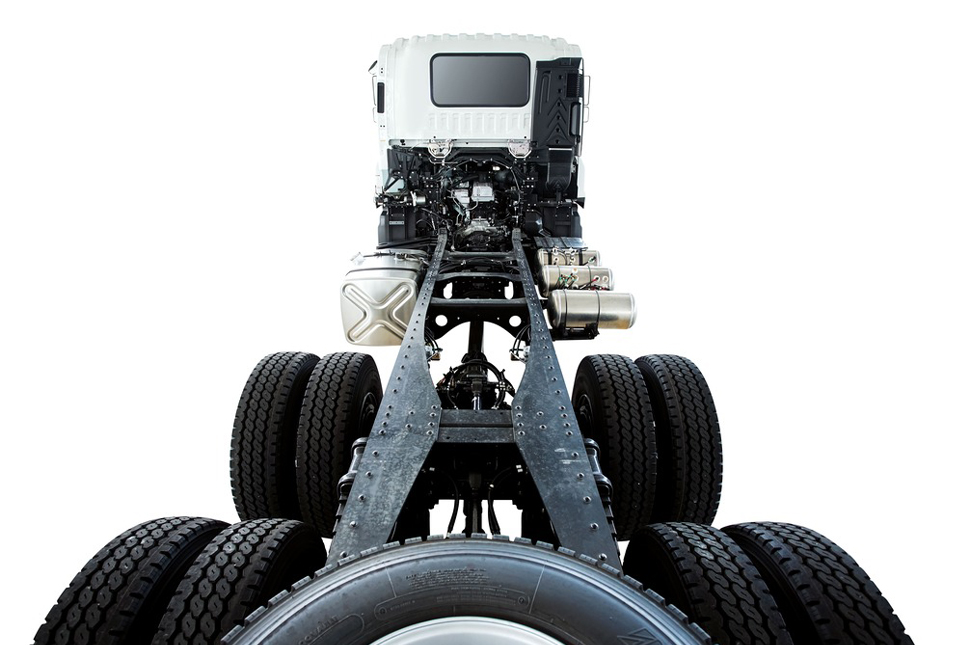

Double layer chassis frame

Aerodynamic cabin exterior design

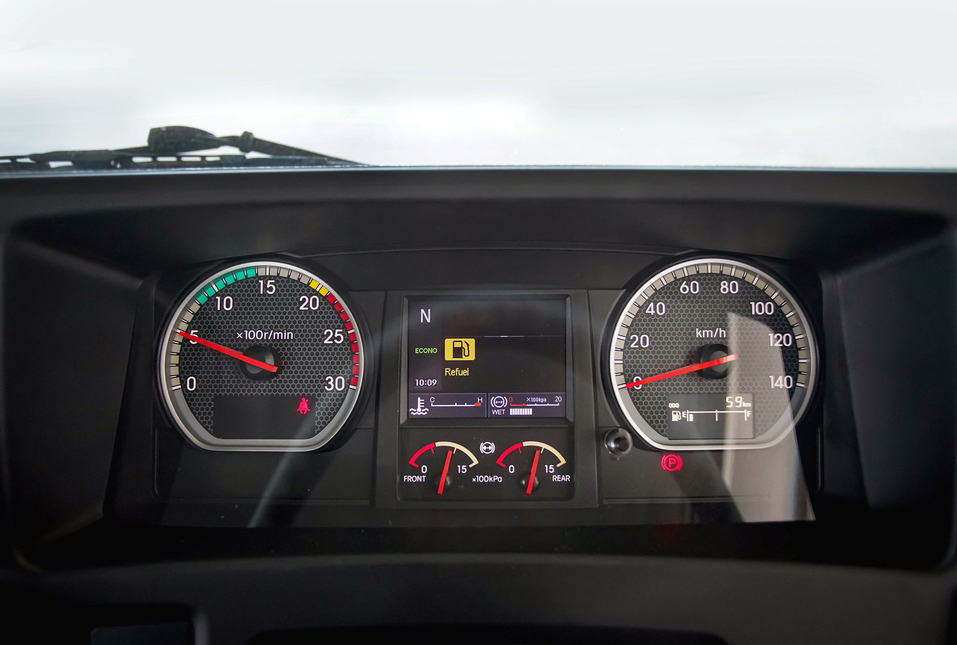

New multi information display meter with 4 inch LCD monitor

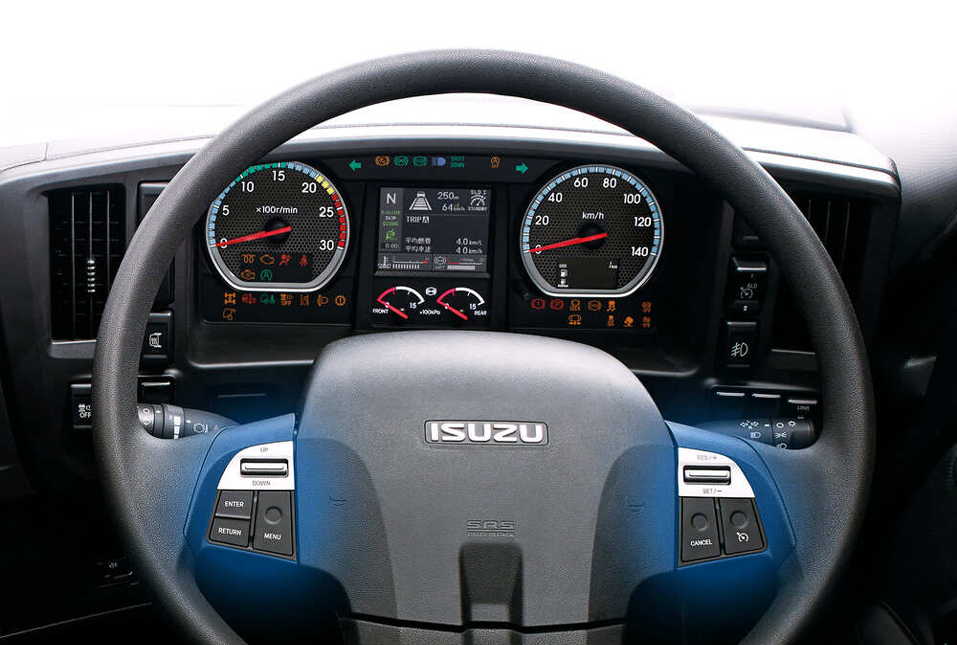

Steering switches for easier accessibility on LCD Monitor & Auto Cruise Operation

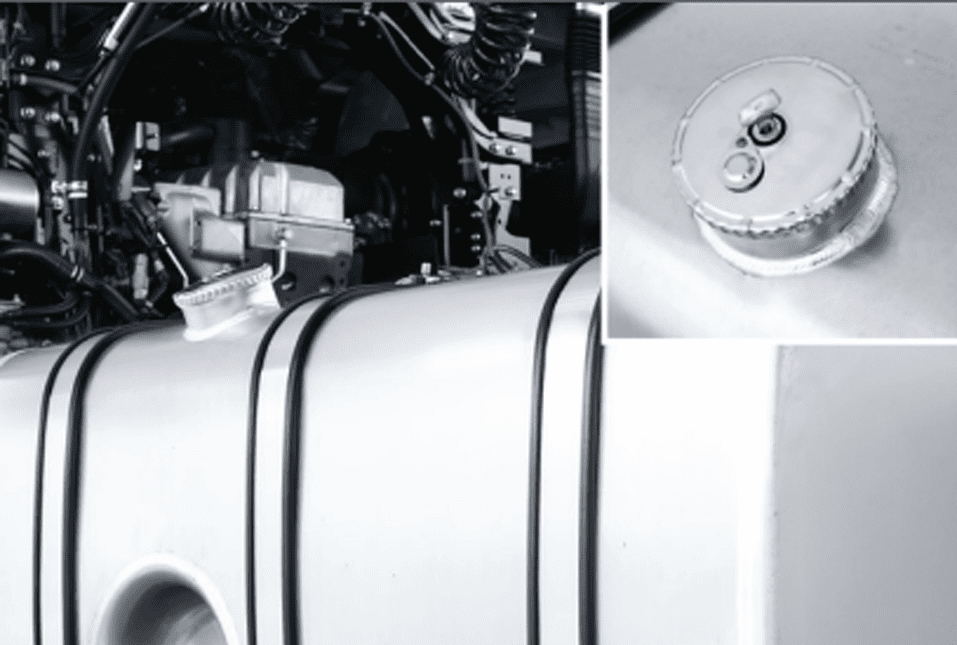

Bigger and durable aluminum alloy fuel tank with lockable cap

Interior

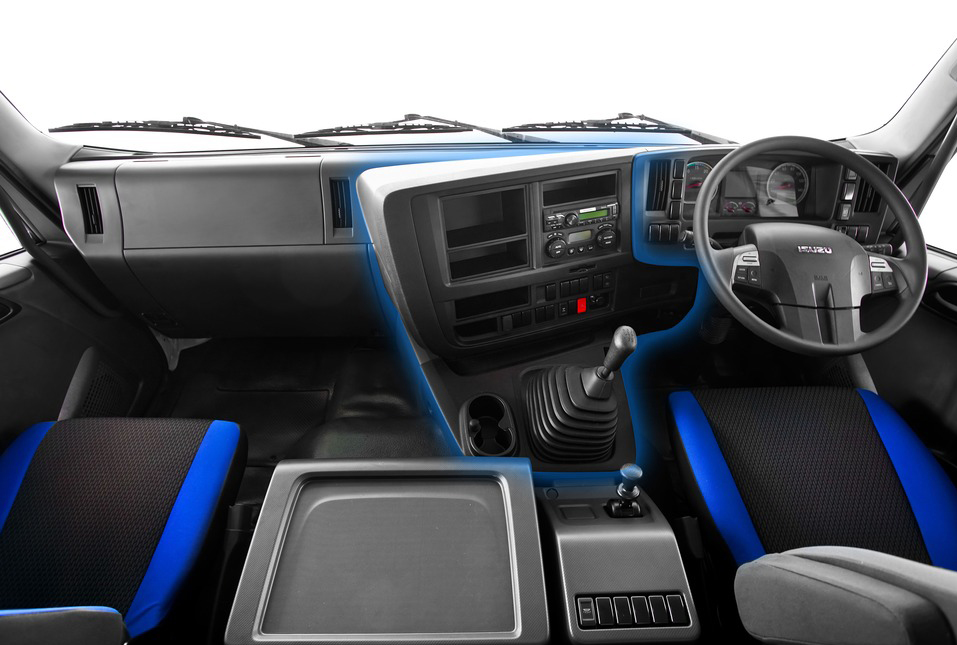

Improved operability with curved design dashboard

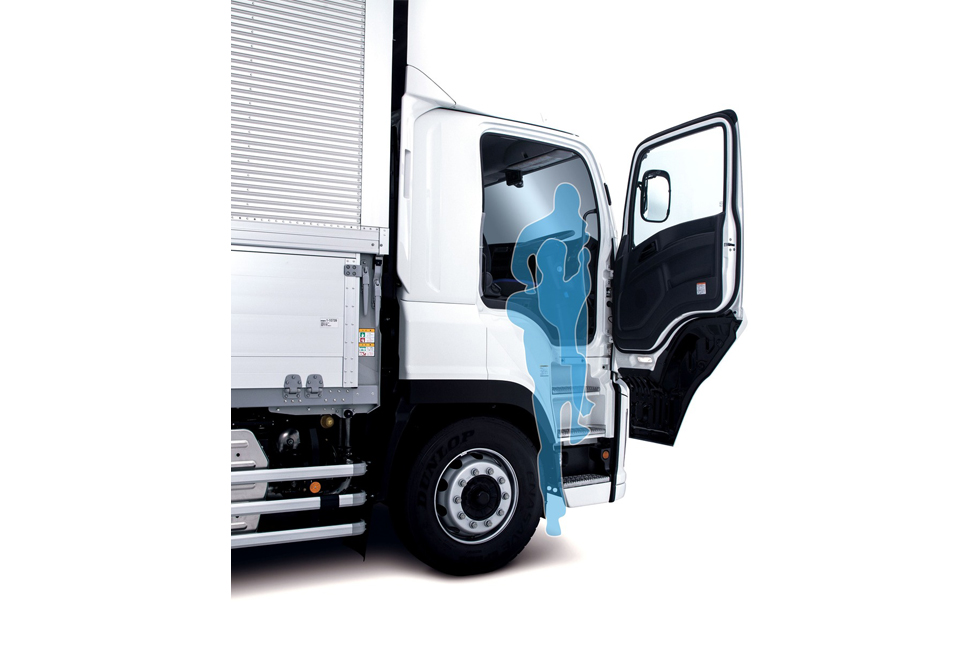

Ergonomic design for easier cabin accessibility

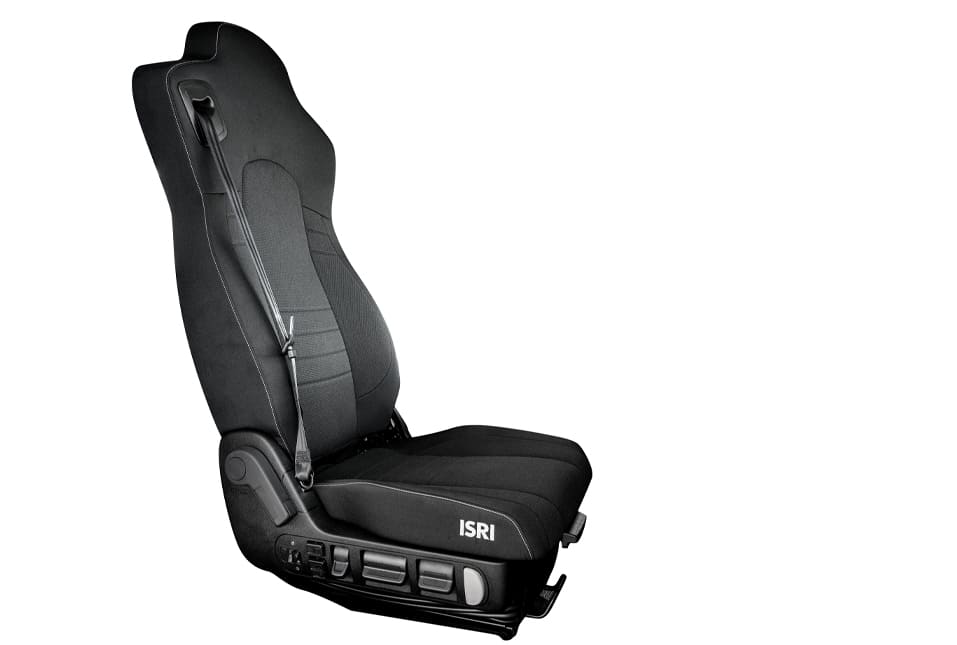

Air suspension driver’s seat to provide maximum comfort

Safety

Various safety feature to protect the driver

Anti-Lock Braking System (ABS)

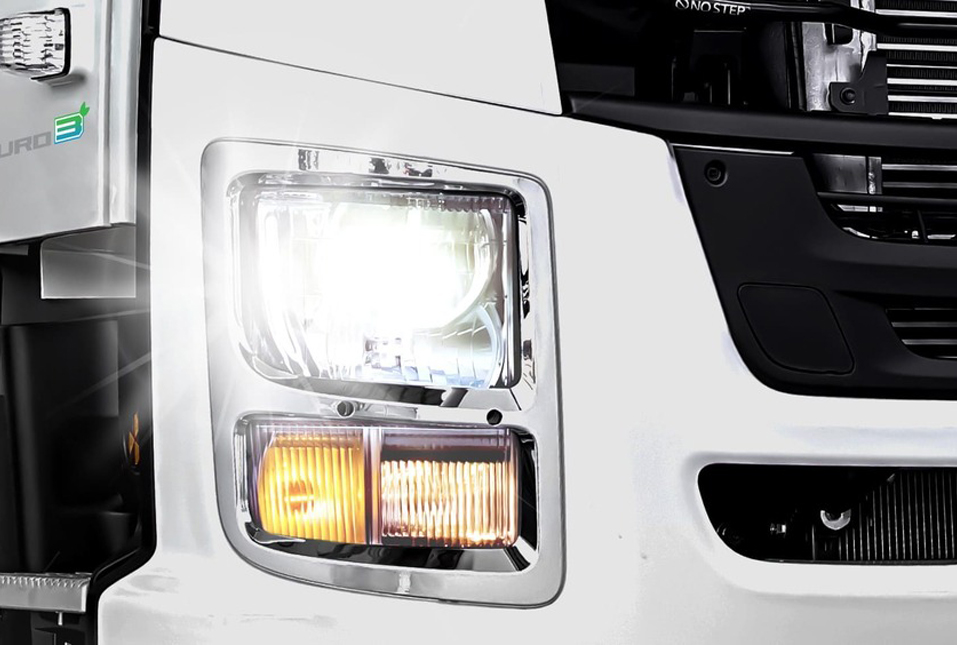

New LED Headlight to provide better visibility

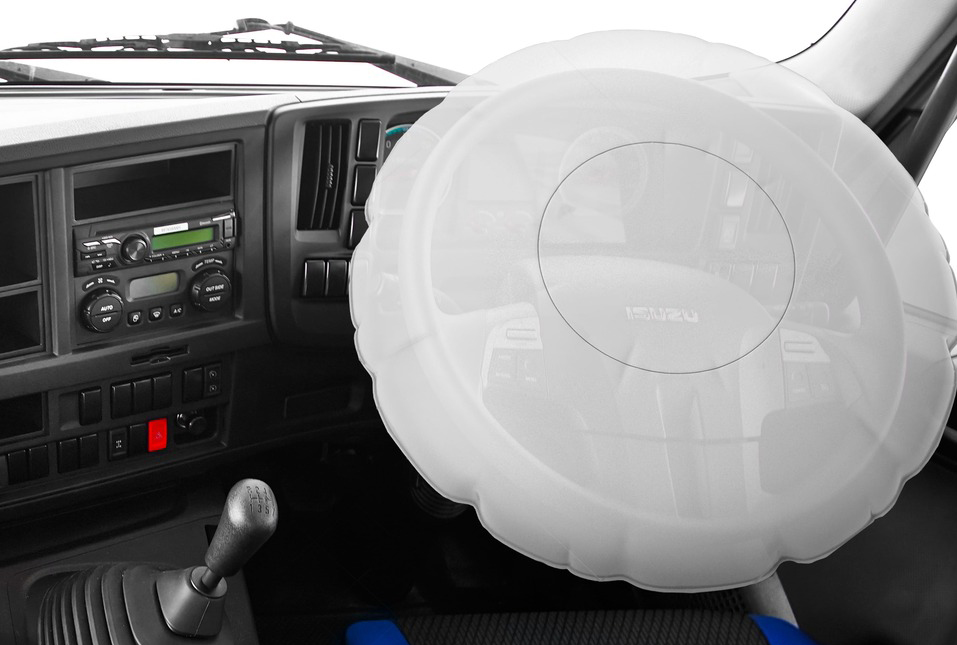

SRS airbag system are activated in the event of a frontal collision.
*Applicable to driver only

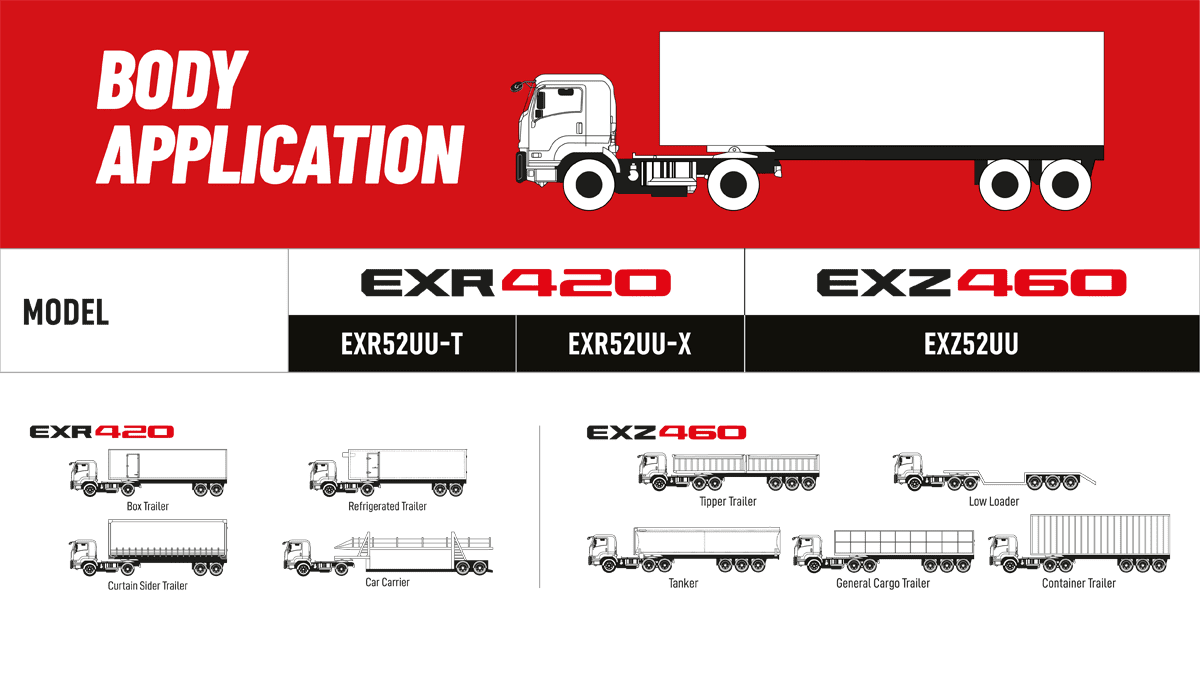

Body Application

Specifications


MODEL CODE		EXR52UU-T	EXR52UU-X	EXZ52UU
e-Brochure
Drive System		4×2		6×4
ENGINE
Model		6WG1-TCN		6WG1-TCC
Type		6-Cylinder In-line, 4-Cycle, Water-Cooled OHC, Turbocharger with Intercooler
Displacement	cc	15,681
Bore x Stroke	mm	147 x 154
Compression Ratio		16.5:1
Maximum Output (Gross)	kW (PS) @ rpm	309 (420) @ 1,800		338 (460) @ 1,800
Maximum Torque	Nm (kgfm) @ rpm	1,863 (190) @ 700-1,300		2,256 (230) @ 900-1,300
Emission Level		Euro 3
Fuel System		Commonrail Direct Injection
TRANSMISSION
Model / No. of Speed		MJT7S, 7 Speeds Manual Transmission	MJX16P, 16 Speeds Automated Manual Transmission	MJX16P, 16 Speeds Manual Transmission	MJX16P, 16 Speeds Automated Manual Transmission
Gear Ratio	1st	6.833	14.012	14.012
	2nd	4.734	11.341	11.341
	3rd	2.783	9.931	9.931
	4th	1.822	8.038	8.038
	5th	1.307	6.839	6.839
	6th	1.000	5.535	5.535
	7th	0.728	4.583	4.583
	8th	–	3.709	3.709
	9th	–	3.057	3.057
	10th	–	2.474	2.474
	11th	–	2.167	2.167
	12th	–	1.754	1.754
	13th	–	1.492	1.492
	14th	–	1.207	1.207
	15th	–	1.000	1.000
	16th	–	0.809	0.809
	Reverse 1	6.327	12.582	12.582
	Reverse 2	–	10.184	10.184
	Final	5.125	4.100	4.556
WEIGHT & CAPACITIES
Gross Vehicle Weight	kg	19,000		24,000
Gross Combine Vehicle Weight	kg	45,000		60,000
Curb Weight	kg	6,795	6,823	8,569
Front	kg	4,647		4,741
Rear	kg	2,148	2,176	3,828
Fuel Tank Capacity	l	550		550
AXLE
Front	Type	Reverse Elliot, I-Beam
Front Axle Capacity (Design)	kg	7,500
Rear	Type	Banjo, Full Floating
Rear Axle Capacity (Design)	kg	13,000		26,000
SUSPENSION SYSTEM
Suspension	Front	Semi Elliptical Alloy Steel Leaf Spring with Hydraulic Double Acting Telescopic Shock Absorbers
Suspension	Rear	Semi Elliptical Alloy Steel Leaf Spring with Hydraulic Double Acting Telescopic Shock Absorbers		Semi Elliptical Alloy Steel Leaf Spring
TYRES & WHEELS
Tyres		295 / 80R22.5
Wheels		22.5 x 8.25 (ISO 10 Studs)
BRAKES
Service		Anti-Lock Brake System (ABS), Full Air with Auto Adjusting Front & Rear Brake Drum, Load Sensing Proportioning Valve (LSPV)
Parking Brake Type		Wheel Parking
Auxiliary		Exhaust Brake
STEERING
Steering System		Hydrautic Integral Recirculating Ball
Min. Turning Radius	m	6.4		7.2
ELECTRICAL
Battery		12V x 2
Alternator		24V – 60A
DIMENSION
Overall Length	OAL mm	5,972		6,751
Overall Width	OAW mm	2,490		2,490
Overall Height	OAH mm	3,123		3,123
Wheelbase	WB mm	3,600		3,315 + 1,370
Front Overhang	FOH mm	1,370		1,370
Rear Overhang	ROH mm	1,002		696
Front Tread	AW mm	2,065		2,065
Rear Tread	CW mm	1,850		1,850
