| MODEL CODE |
FVR34UU-SDN |
| e-Brochure |
|
| Drive System |
4×2 |
| ENGINE |
|
| Model |
6HK1-TCN |
| SUSPENSION SYSTEM |
|
| Type |
6-Cylinder Inline,4 Cycle, Water-Cooled |
| OHC, Variable Geometry System (VGS) Turbocharger with lntercooler |
| Displacement |
cc |
7,790 |
| Maximum Output (Gross) |
kW (PS) @ rpm |
177(240) @ 2400 |
| Maximum Torque |
Nm (kgfm) @ rpm |
706 @1450 |
| Emission Level |
Euro 5 |
| Fuel System |
Common Rail Direct Injection |
| After Treatment Exhaust Gas |
DOC (Diesel Oxidation Catalyst) |
| TRANSMISSION |
|
| Model / No. of Speed |
ISUZU MZW-6P/ 6-Speed AMT |
| Gear Ratio |
1st |
6.615 |
| 2nd |
4.095 |
| 3rd |
2.358 |
| 4th |
1.531 |
| 5th |
1.000 |
| 6th |
0.722 |
| Reverse |
6.615 |
| Final |
6.170 |
| WEIGHT & CAPACITIES |
|
| Gross Vehicle Weight |
kg |
19,000 |
| Curb Weight |
kg |
5,730 |
| Front |
kg |
3,400 |
| Rear |
kg |
2,330 |

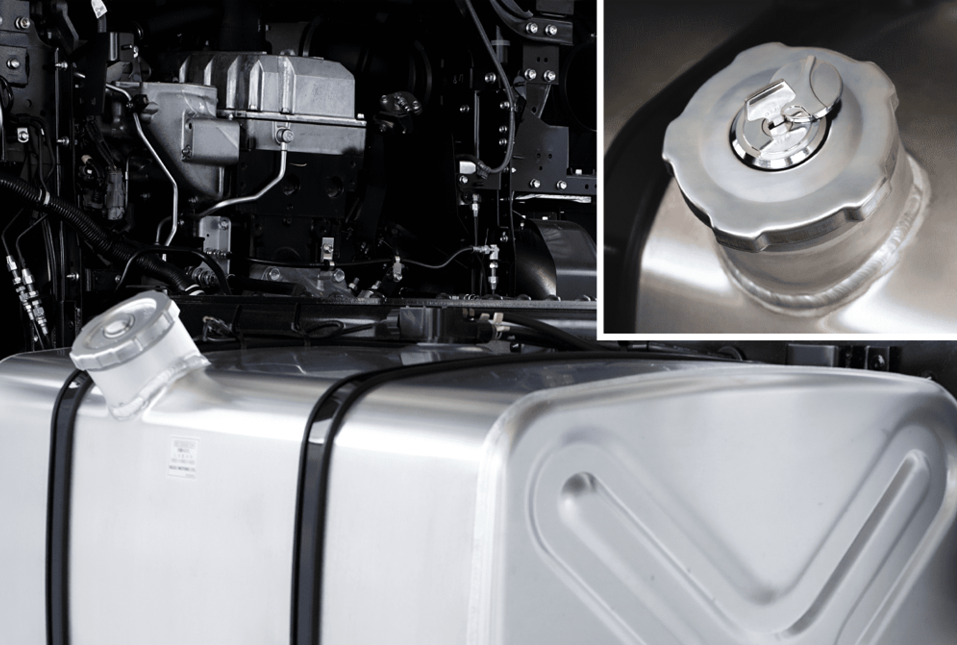

| Fuel Tank Capacity |
l |
400 |
| AXLE |
|
| Front |
Type |
Reverse Elliot, I-Beam |
| Front Axle Capacity (Design) |
kg |
7,500 |
| Rear |
Type |
Banjo, Full Floating |
| Rear Axle Capacity (Design) |
kg |
9,000 |
| SUSPENSION SYSTEM |
|
| Suspension |
Front |
Semi Elliptical Alloy Steel Leaf Spring with Double Acting Telescopic Shock Absorber |
| Rear |
Semi Elliptical Alloy Steel Leaf Spring |
| TYRES & WHEELS |
|
| Tyres |
295/80R225 |
| Wheels |
22.5×8.25 |
| BRAKES |
|
| Service |
Full Air ‘S-Cam’ Front and Rear Drum Brakes |
| Parking Brake Type |
Spring Park Brake Acting on all Rear Wheels |
| Auxiliary |
Exhaust Brake |
| STEERING |
|
| Steering System |
Power Assist, Hydraulic Integral Recirculating Ball Type |
| Min. Turning Radius |
m |
8.6 |
| ELECTRICAL |
|
| Battery |
65D26LX2 |
| Alternator |
24V-60A |
| Other Safety |
|
| Active Safety |
Anti-Locking Brake System (ABS) |
| Cab Tilt Warning (CTW) |
| Passive Safety |

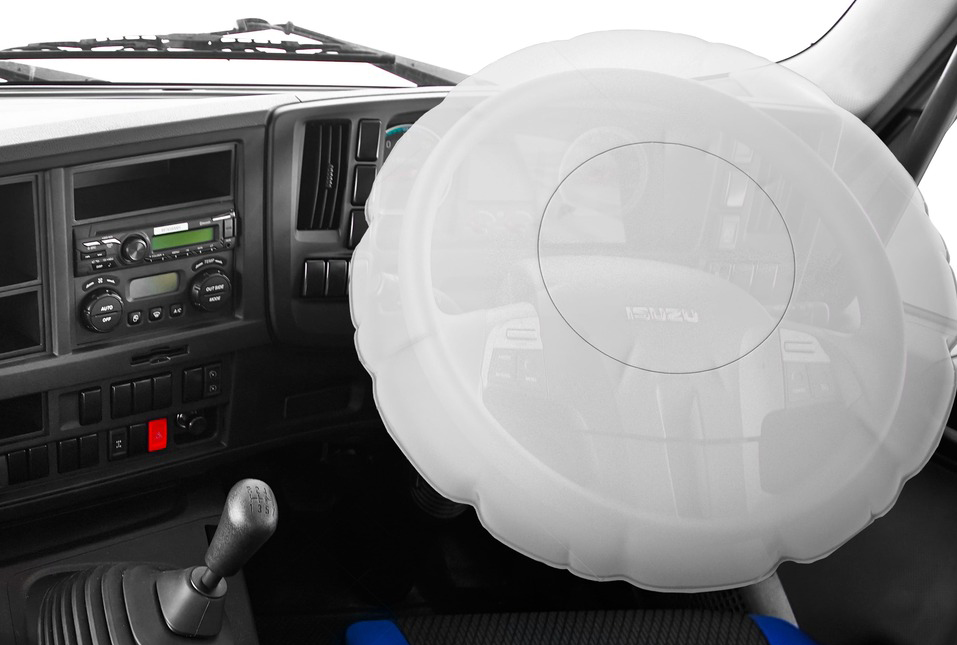

Driver Supplemental Restraint System (SRS) |
| Driver Seatbelt Pre-tensioner |
| Security |
Central Locking with Remote Keyless Entry and Immobiliser |
| DIMENSION |
|
| Overall Length |
OAL mm |
10,355 |
| Overall Width |
OAW mm |
2,490 |
| Overall Height |
OAH mm |
2,890 |
| Wheelbase |
WB mm |
6,160 |
| Front Overhang |
FOH mm |
1,255 |
| Rear Overhang |
ROH mm |
2,940 |
| Front Tread |
AW mm |
2,090 |
| Rear Tread |
CW mm |
1,850 |
